Before I shape the neck, before I finally attach the body to it, I need to radius the fingerboard to make chording, bending, etc. easier (electrics and steel-string acoustics are usually radiused, classical guitars are not). This is done with a very sharp block plane, and a perfectly flat sanding stick. There are many options as far as how much to radius according to the player’s preference. I’ll be going with a comfortable 12″ (more or less). There are also two types of radii: cyclindrical, which uses a set radius sanding block, which means as the fingerboard tapers, the resulting edges will change; or, a compound radius, which keeps the same edge all along the fingerboard, and results in different radii depending on the width. I am going with a compound radius.

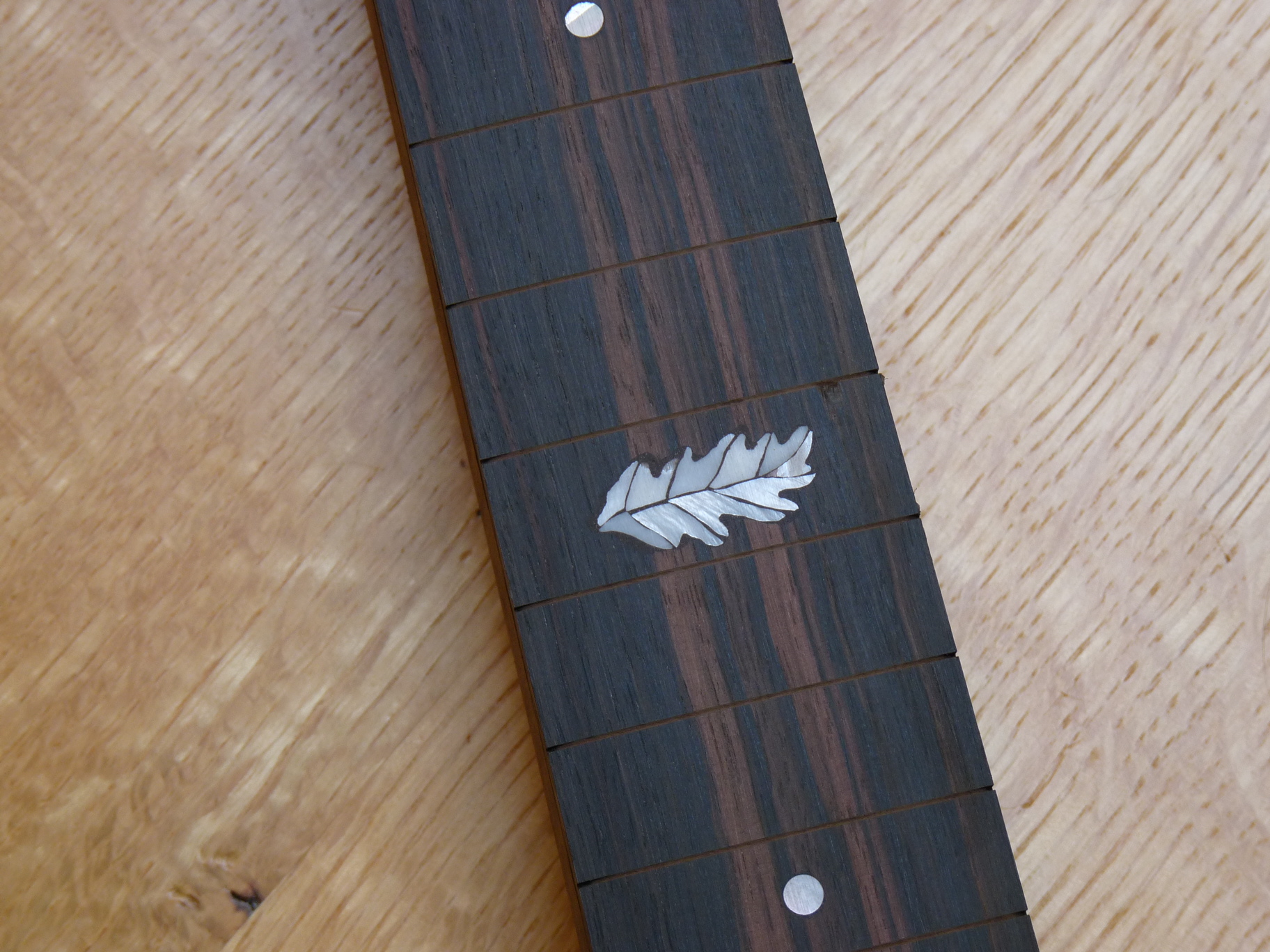

With the radius roughed in, I can now inlay the fret position markers. I’m using 3/16″ MOP dots for all but the 12th fret. There, I designed (with the help of Benjy Davies) an oak leaf. In order to match the radius, and get some veining, I decided to make the leaf from 10 separate pieces, all very tiny, and all nerve-racking to saw from the MOP blanks. But, with a couple of redos thanks to tiny, fragile, thin sections snapping off trying force a curve, they all got cut.

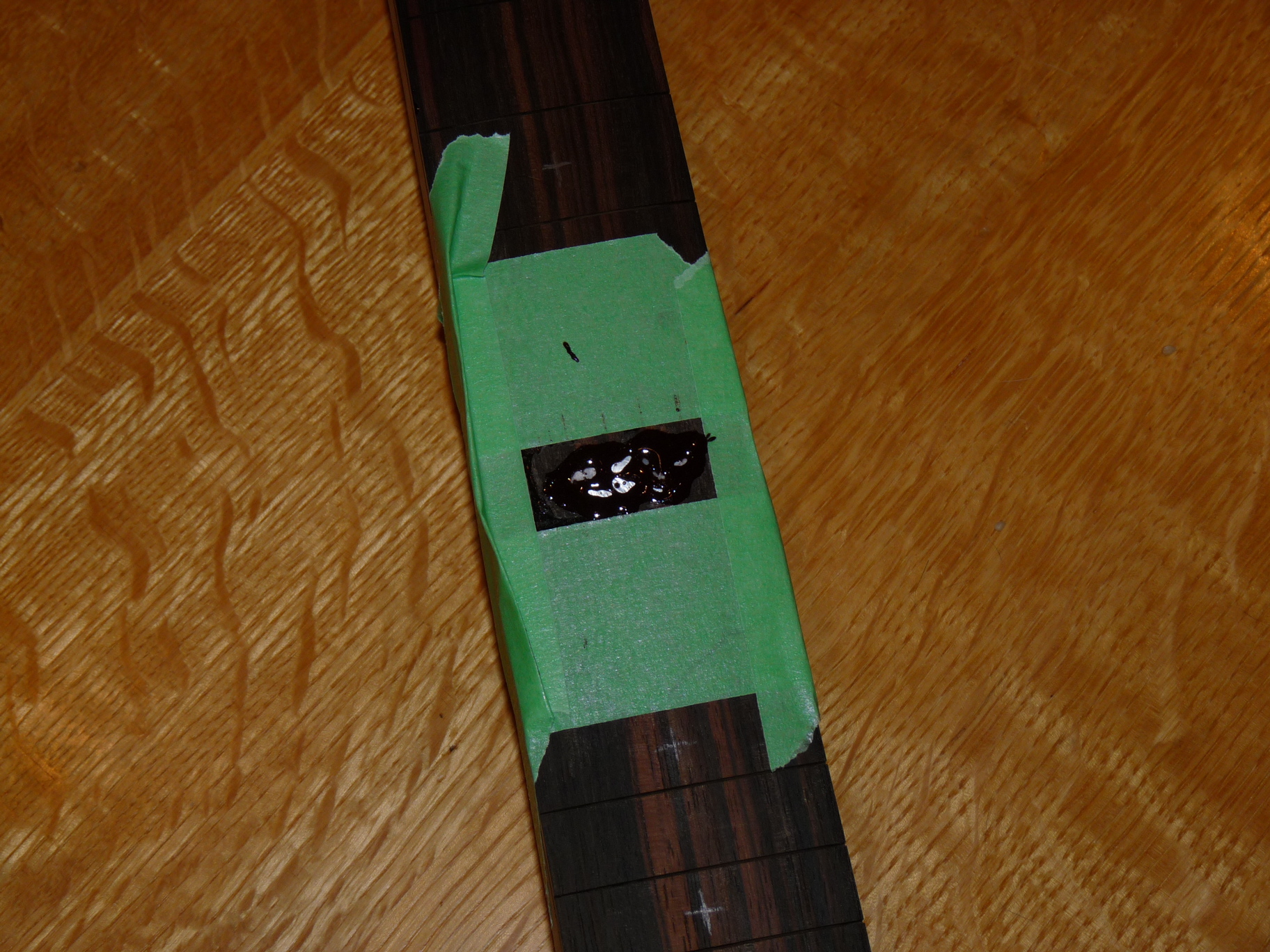

Some clean up/fine tuning with some riffler files, and then I, once again, positioned the final leaf under some clear packing tape to take to the copier and get my routing template. Careful routing with the laminate trimmer and a 1/16″ spiral cutter; test fitting; fine tuning with the trimmer, and I’m ready to glue. Since there were so many pieces, I decided to go with epoxy rather than CA glue, so I would have more time to make adjustments (no quick setting epoxy here). Also, I knew I had some gaps (most inlays do), and epoxy takes dye much better than CA glue. I mixed up the epoxy and added some antique maple and black dye until I had a good color match with the Macassar Ebony, which isn’t black like Gabon Ebony, but more dark brown. I found that adding the black dye in steps allowed me to creep up on the color match. Then, with some tape to mask the borders, I filled the pocket with epoxy and added the MOP pieces one by one. One thing I hadn’t counted on was the overflow covering up the pieces, which made positioning them a matter of feel (read: guesswork). Then let dry overnight.

Next, after marking the dot position, I drilled the holes for the MOP dots. I carefully checked my 3/16″ brad point bits with a dial caliper and found them all slightly oversized. So, I found a regular twist bit that was exactly 3/16″ and started drilling. These I could use thick CA glue with, since they didn’t need any positioning once they were in. Then, with everything set and cured, I took the sanding stick with 100 grit and sanded down to the inlay, also further refining the radius. the result:

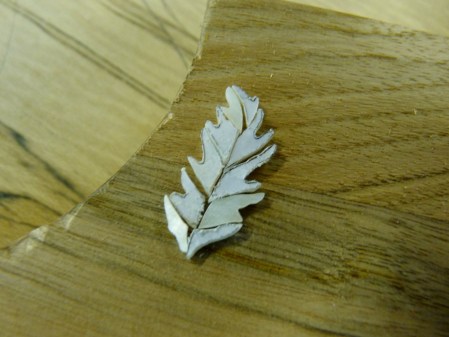

Not perfect (thanks to not being able to see to position as well as I’d wanted), but OK, certainly good for a first effort with a multiple piece inlay. This will be my guitar, after all, and its better to practice on this before trying it on a client’s build.

Now, if only this heat wave would break so I could get some more work done! (Here’s a tip, if you are building a workshop, make sure it has insulation and heating/cooling!)

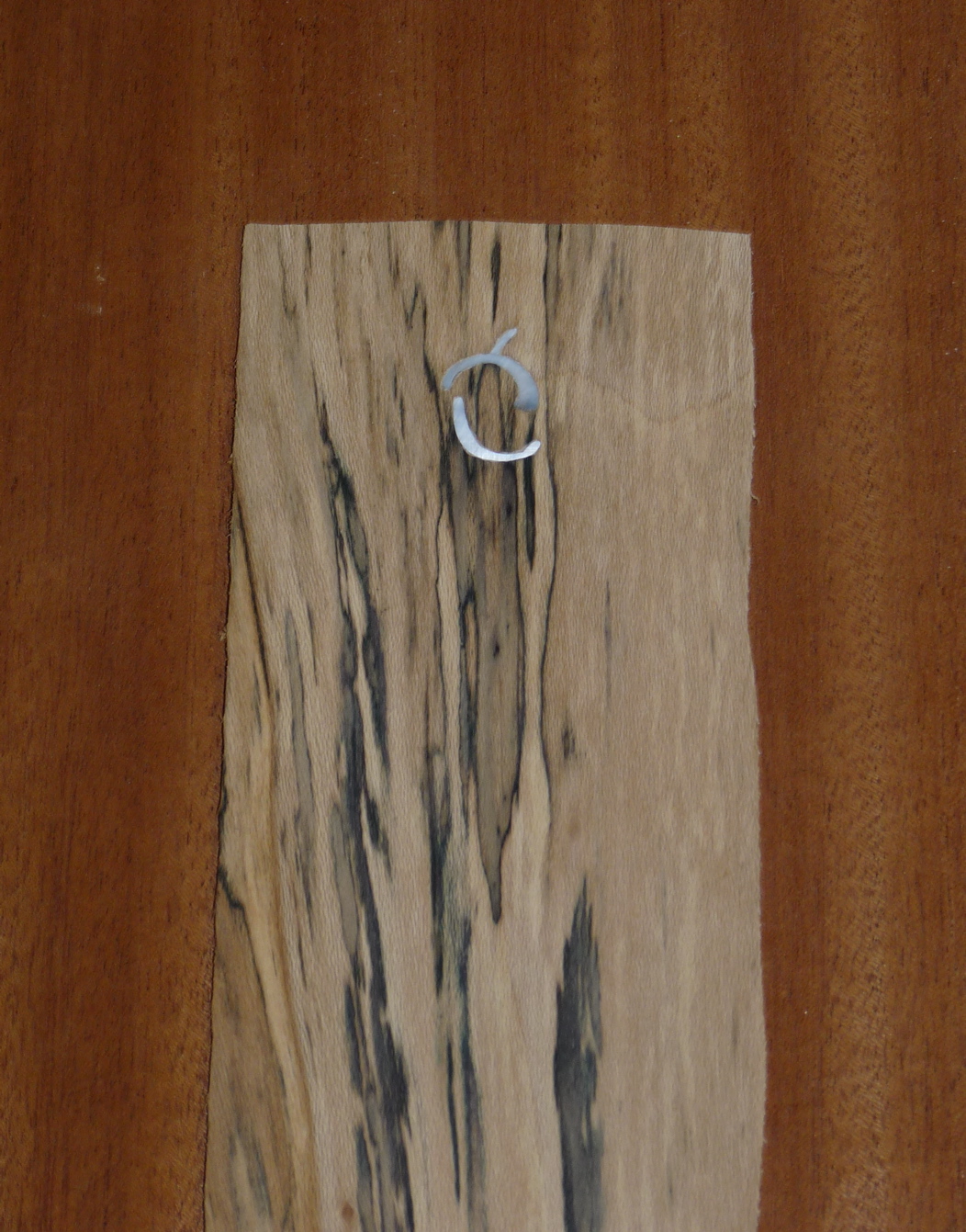

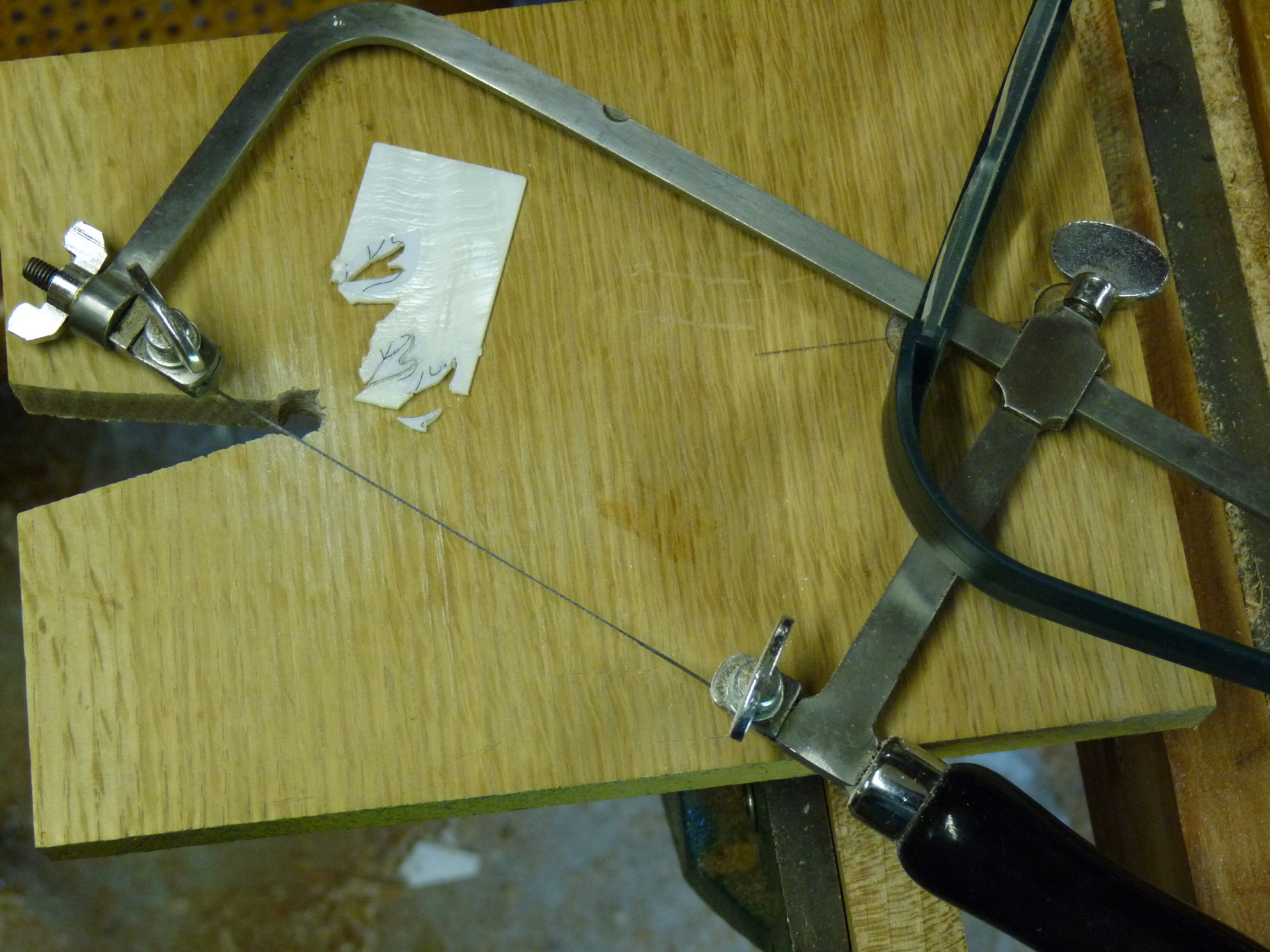

Before gluing on the headstock veneer, I needed to inlay my acorn logo in Mother of Pearl (MOP). Hand cutting with a small fret saw on a bird’s mouth platform is required (at least until I get that CNC guided laser cutter installed. Maybe around 2027) Some kind of magnifying glasses is a definite must.

A little touch-up filing with some riffler files to smooth any errant bumps and I’m ready to inlay. Because the pieces are so small and fragile, glueing or taping them on to the headstock to trace around them with a knife is not an option. So, I arranged them in their finished position, carefully stuck a piece of blue tape to hold them, and took that to the copier. That gave me an exact impression of the actual pieces (rather than the original art, which may, or may not, have been sawn exactly). This copy was glued to the headstock. I used a laminate trimmer with a 1/16″ spiral cutter bit — and the mag-glasses! — to carefully rout out the pockets. I’m using a piece of spalted sycamore, the same wood that will be the top of the body, for the headstock veneer. Double-check the fit, and then glue in using some thick CA glue. Over to the drum sander to sand to thickness and we’re ready to glue to the headstock.

I glued on the inlayed veneer, along with a piece of mahogany veneer for a contrasting band, to the headstock. Then rough cut the head shape, and used a pattern routing bit to rout to an MDF pattern I had made. The head was finished.

Next, after inserting the truss rod, I glued on the Macasser Ebony fingerboard, clamped it up, and let it cure. After unclamping, I brought it back in to the house to settle……

Then I saw it……

At some time in the process, whether due to the high humidity in the shop, or due to planing error, or a combination of the two, I noticed that the neck had developed a twist. ^*#&@&#$% @&^%$&^& $%(@&^%$  *^%$(&^%! Unfortunately, I had neglected to check for the twist before I glued the fingerboard on.

One thing about guitar necks, they MUST be straight, or the instrument will be unplayable. So, there was nothing else but to make a new neck. I was able to slice off the inlayed headstock veneer to reuse, but in order to use the fingerboard, I would have to get the truss rod out first. Despite my best efforts, it would not budge. I have purposely made it a tight fit, and some glue might have squeezed onto it, because it didn’t want to move. I finally cut some relief cuts from under the neck and managed to pry it out, but not without bending the adjusting rod. So, I can reuse the fingerboard, but need a new truss rod. It could be worse.

Made a new neck, etc., and got back to the glued fingerboard stage. After glueing the fingerboard, the neck gets tapered. To find the right angle for the taper, you have to make a full scale layout using the string width at the bridge, the scale length of the guitar (how long from the nut to the bridge), and the desired width of the strings at the nut. Add 1/8″ to each side so the strings don’t fall off and voila. Since I am making a through-neck guitar, I had already done this before beginning construction so I could make the neck the correct width where it met the body.

Next, I will be radiusing the fingerboard and inlaying an oak leaf at the 12th fret position.

You can play “Twist and Shout” on a finished guitar, but don’t develop a twist while you’re building one or you’ll REALLY be shouting!

Building an electric guitar definitely requires pre-planning. The first decision is what style of guitar to build. The two main types of design derive from the two big builders: Gibson and Fender. With a few exceptions, most other designs are variations of these two companies’ offerings. The biggest difference is the type of bridge used; Fender favors a lower design, whether tremolo or hardtail, while Gibson typically uses tune-o-matic type bridges. What this means for the builder is how to handle the neck. The lower the bridge, the less (or even no) neck angle is required for the strings to be at the proper distance from the neck and hardware. Tune-o-matic style bridges, being taller, require some degree of neck angle, at least 2°, more typically 3° (+). So, it is vital that you choose your design and gather all of the pickups and hardware before even beginning to touch the wood.

I will be building a Gibson derived guitar using a through-neck design. This means that the wood used for the neck will continue down to become part of the body. This allows me to build in more access to the higher strings with deep double cutaways without compromising the strength of the neck join (since there won’t be any!). It does make it a little more challenging to build, since the required neck angle has to be there from the beginning, rather than fine tuned when attaching the neck to the body.

After hearing the resonance of Butternut, and feeling how light it is, I had decided to use it for the neck and body, reinforcing the neck with strips of maple for added strength. However, when I went to rip the butternut for the neck glueup, it warped terribly, indicating a lot of inner tension in the wood. Not what you look for in a guitar neck, where the goal is to end up with a stable and, above all, straight, finished product. So, I decided to use the curly maple for the neck, alternating with thin mahogany  strips to get the required width.

After this first neck glueup, I did a careful layout, using the exact dimensions of the bridge in hand, to figure out the exact angle for the neck (and double checking everything. There is NO second chance, here!) An angle cutting jig at the table saw, with a little hand tool cleanup produced the basic neck roughout. My angle turned out to be 2.5°.

Next, a scarf joint creates the angled headstock (another key difference between Gibson and Fender designs). This is the same technique used for the parlor guitars, except the headstock is thinner, since it solid rather than slotted. Again, one of the best benefits of the scarf joint, aside from conserving wood, is that you have long grain the length of the headstock, rather than shorter angled end grain if you had cut the angle from bigger stock.

In order to reinforce it and allow a thin, comfortable, neck, truss rods are required to counteract the force of the strings. A channel is routed into the neck. Since the truss rod I had purchased (again, get the parts BEFOREHAND) is 3/16″ wide, I used a 1/8″ spiral bit and an edge guide on the laminate trimmer, routing form both edges of the neck. This has the added benefit of guaranteeing that the channel is perfectly centered. After the basic channel is routed to the proper depth (don’t go too deep. or you will break through when you start to shape the neck contours), some hand work is needed to provide room for the adjustment nut , leaving just enough room for the nut, but not taking away too much wood to weaken the neck joint.

The final part of the initial neck work is to add wings to the headstock to widen the headstock to desired size. This, along with the headstock top veneers which will be added later, has the added benefit of reinforcing the scarf joint. Guitar building, acoustic or electric, is all about removing wood, then reinforcing the resultant weaknesses.

Well, that’s enough shooting angles for today.

I’ve been getting in some time at the lathe, turning one bowl blank that I’ve had for a year or two, and one that I just got the week before.

The first bowl was a small 2″x6″x6″ blank of redheart that I got in a mixed lot from Westpenn. I had a pre-plan to turn a thin, flared, undercut lip with a shallow bowl. The redheart was ideal for this because of its tight grain. Since it doesn’t have any pronounced figure, the form and the color are the stars of this show. The wood didn’t pose any problems turning, responding equally well to the gouge and the scraper (for the final smoothing). I strived to get the lip as thin as possible, while still having it provide a handhold. Since the wood was dry, I didn’t have any movement as it got thinner to worry about. The only finish was a tripoli polish after sanding to 400 grit.

The other bowl started as a fairly fresh Butternut Burl, about 8″x14″x10″. (One customer of my supplier who saw it said that it looked like a turtle. Luckily, he had already promised it to me.) The first step was to saw it into a circle no larger than 9″ in diameter. Since most of the flare was thin, I didn’t really waste any wood rounding it. Then, attaching it with a screw chuck, I shaped the outside outside, adding a tenon for the chuck to grab onto when I inverted it. Being a little wet still, the gouge took off the wood easily, although not too cleanly. The scraper and sandpaper fared better at that. My objective with this bowl was to turn it completely in one session and dry it in the microwave; accepting, and even encouraging, any resultant warpage.

After finishing the outside, I inverted it and began to work on the inside. With the grain and figure from the burl, I went with a plain, inverted, bell shape, letting the wood itself be the star. As I worked my way in, I could tell that as the first part of the wall was thinned down, it was drying and getting out of round. So I didn’t dare go too thin with this one. Getting it scraper smooth every inch or so was the order of the day; no time for fussing, and no coming back to an already finished section, it would be out of round by then. I worked my way to the bottom, and then sanded the inside to 400 grit.

I didn’t want any foot on this bowl, so I reversed it onto a jam chuck, with a live center to hold it on, and removed most of the tenon, leaving a raised base with a center recess. The last part of the tenon I took off off the lathe with a sharp gouge. Then to the microwave. Short 1 minute exposures at medium to low power – taking it out immediately to let the moisture escape and the bowl to cool down. I don’t know how many times I zapped it, but it was quite a few. Then after thoroughly cooling, I sanded it back down to 400 grit. Not only did I get some warpage, but the curls dried at different rates, providing some surface variations. The wipe-on poly brought out all of the figures and colors of the burl.

In an earlier posting, I had show what happens when the wrong length brad is in the nail gun. After removing the errant brads, I applied some shop sawn veneers to the wounded areas, refinished, and glued and stretched a new paper. There is a little color difference from the older wood getting some sun prior to repairing, but that will blend over time.

Next up, an electric guitar build.

One of the woods that I’ve been wanting to work with is butternut. So, when one of my local suppliers mentioned that he had a board, fresh out of the kiln, I grabbed it up, even though it was a little rustic (better grades are still in the kiln, processing). Even with its defects, I could see that it had a lot of the character that I prefer in wood.

Another first impression I had was how light it was, even for an 8/4, 6 foot long plank. Butternut is a relative of walnut, often called “white walnut”, and is used for carving, as well as furniture. It is not as strong as walnut, but very easy to work with, which means, of course, being extra careful not to ding and dent it. I would describe it as having the grain of walnut, the lightness and strength of poplar, and the color of elm. I also noted how resonant it it. I can easily see it making into the body of a guitar in the future.

Since I needed a luthier’s toolbox to keep all of the various small tools and parts, I thought this would be the perfect opportunity to try it out, and also to try some carving. I used traditional box joints; on 3/8″ thick sides, I felt dovetails would be excessive; plus, with the rustic character of the wood, I didn’t want anything too fancy, just good, strong, honest joinery. After the sides were dry fitted, I worked on the carving of the Acorn House logo into the top board. Butternut certainly lives up to its reputation as a carve-friendly wood, mallets are unnecessary.  As a novice carver, the grain direction caught me out a few times, but, in the end, I think it came out appropriate to the style. I left the background toolmarked rather than smooth.

Glue up, with a similar resawed butternut board for the bottom, went smoothly using liquid hide glue. With all of the notches of the box joinery, using a faster setting glue would have been a nightmare. Prior to glue up, I had sawn a dado where I would be separating the lid, so, after it had dried, and I had given it an initial planing and sanding, I could cut the top off with the table saw and have a lip to catch the top.

Next was a small tray to hold all of the small parts and materials. 1/4″ sides and 1/8″ dividers makes for an incredibly light tray. I used only quartersawn butternut to give it the maximum strength, and more box joints. The tray slides on two side runners.

Finally the hardware. I decided against any metal hinges or latches, and used some more quatersawn (for optimum strength) butternut and made them myself, using a 3/16″ brass rod for the hinge pin, and a turned ebony latch pin. One thing I discovered while drilling out the holes for the pins is how fragile butternut can be. Even quartersawn, the thinness of the hinge ends wanted to tear out from the drill. I used some CA glue to strengthen the weakened ares and screwed the hinges on without glue, so, if they ever fail, I can replace them without too much problem. A denser wood wood be a better choice, next time.

I finished the box with a first coat of Danish Oil, followed by some wipe-on poly (and shellac for the tray). The butternut really blossoms under the finish, with a depth and a glow that rivals any other fine wood.

Its true what they say. Everything really does taste better with butter!

I’ve been working on a couple of projects that were going to be gifts, so I wasn’t able to talk much about what was happening in the workshop. But they’ve been delivered, so here is a recap.

The first project was a commission for another music stand to be a graduation present for a Music/English major here at Rio. I used the opportunity to expand my skill set, since there was no new design work to be done. Instead of attaching the legs with a routed dovetail, I used the table saw to rough in the dovetails on the legs, and then my old Disston No. 68 dovetail saw to cut the matching socket and a chisel to pare out the waste. I think the most challenging aspect of this method is trying to carve a curve in the leg’s shoulders to match the curve of the post. You definitely need a well sharpened gouge to work on the end grain. other than that, I certainly prefer it to the jigs and fixtures needed to get the grooves routed.

The client was pleased.

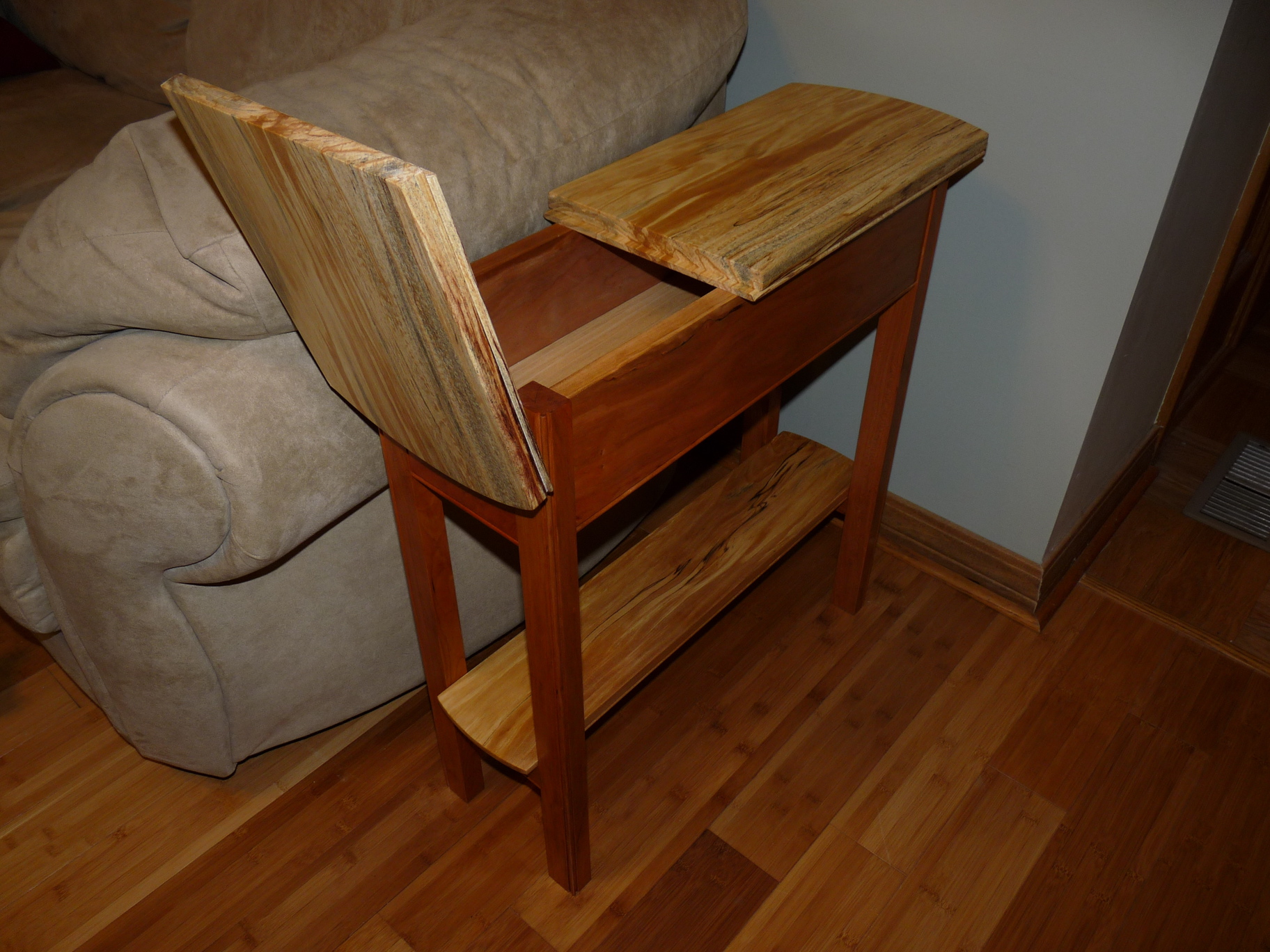

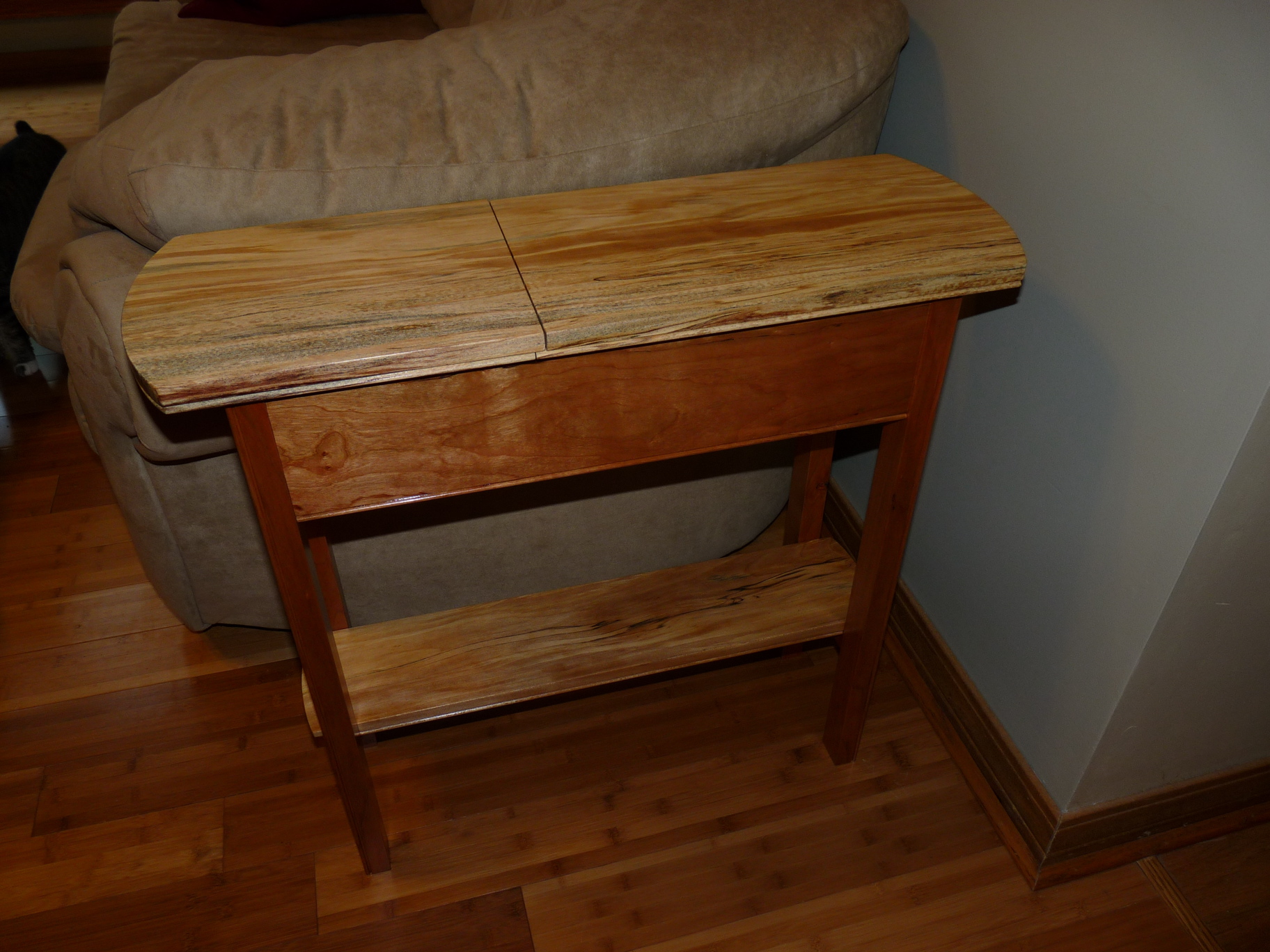

The second gift was for Mother’s Day. It was a side table to sit next to a big recliner with a storage area under the top. The picture I was shown had a basic box on legs with a shelf underneath. What I didn’t like about it was that the top opened via a hinge by folding back on itself. Which means that when you open it, you can’t have anything on the stationary part of the top. So, aside from jazzing up the design a bit with some curves, I had the moved the hinge to the end, so that it opened out. Also, to make it easier to retrieve items towards the back of the “fixed” part, I attached the rest of the top with buttons in a groove that ran the full length of the “fixed” top. That way it can slide back, while at the same time allowing for any wood movement. I used cherry for the legs and aprons, and spalted sycamore for the top and shelf.
